Design based on the expected load

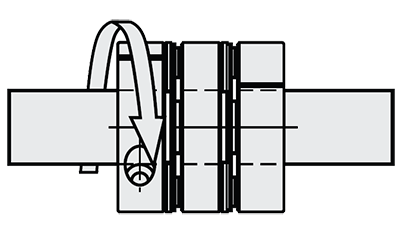

Flexible shaft couplings are used particularly if, in addition to transmitting torques, offsets and vibrations or impacts are to be compensated. In practice, however, the required operating data and influencing variables can hardly or only with difficulty be determined by calculation. Therefore, the design is generally performed using a simplified method. For the design, there is a variant with application factor or the design according to the worst-case load type.
The selection using application factors is one of the simplified variants for carrying out a design based on load. In this procedure, which is based on experience, the design of the shaft coupling is carried out using the safety factors (application factors) provided by the manufacturer. The application factor specified by the manufacturer takes into account the type of drive, operation and any additional forces that may occur, such as shock loads or frequent fluctuating loads initiated from the outside. The determined application factor may then be multiplied by the maximum torque of the shaft coupling. The manufacturer often specifies a range for the selection of the respective factor. Here, the amount of the selected factor and the resulting safety reserve must be weighed.
The following applies here:
The more rigid the connection, the more likely and stronger the load peaks are because the coupling does not elastically compensate for them. The factor must therefore become higher to prevent the coupling from failing. The application factor calculation allows for easy calculation in standard applications, but often results in overly high safety factors. Even the torsional vibrations that may occur with a highly uneven drive may not be sufficiently taken into account. Therefore, in these cases, a calculation according to worst-case load type (DIN 740-2) should be used.
DIN 740-2 is used for the variant according to the worst-case load type. The standard provides calculation principles for compliant shaft couplings and takes into account various load types and influences such as frequency, temperature, start-up frequency, etc., to ensure a safe and reliable coupling design. Unfavorable load types result, for example, from increased shock, vibration or temperature load. Extreme temperatures can negatively affect the material properties of the shaft coupling. Excessive shock and vibration loads cause sudden and high peak loads that can lead to damage.
