DIN 7985 and JIS B 1111 - Flat head screws with cross slot

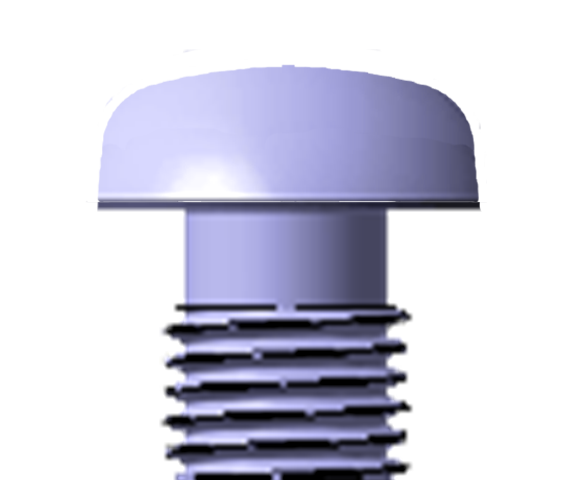

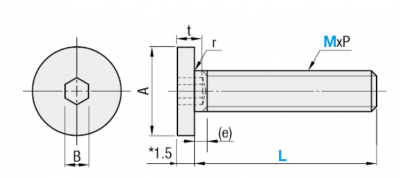

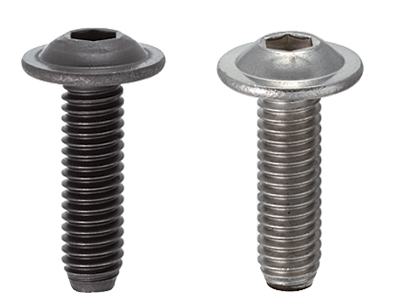

DIN 7985 is an established standard by which pan head screws (flat head screws) are manufactured with cross slot drive. The standard is officially withdrawn by DIN (German Institute for Standardization e.V.) due to its integration in a global standardization and replaced by DIN EN ISO 7045 - flat head screws with cross slots, Shape H or Shape Z - product class A. However, it is still used as a standard for pan head screws.
Their technical characteristics are as follows:
- Head diameter: Approximately 1.7 times the thread diameter
- Head height: Approximately 20% of the nominal diameter
- Available Materials: Stainless steel (A2, A4), steel (8.8, 10.9), brass

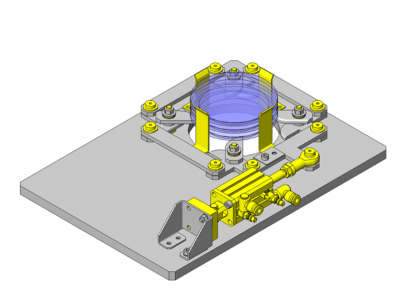

- Applications: Electrical engineering, mechanical engineering, furniture industry

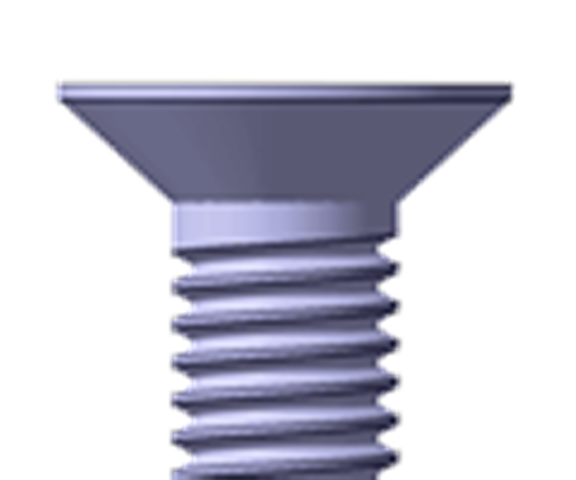

The JIS B 1111 also describes screws with Phillips drive. However, unlike ISO 7045, it treats both flat and countersunk head screws. It complies with DIN 7985 in many aspects, but also has some differences. For example, the head diameter is slightly larger for the JIS B 1111 and the head height is somewhat flatter than for the DIN 7985. In addition, the JIS B 1111 refers to the Japanese JIS cross recess profile, which has a little more depth and is slimmer than Phillips or Pozidriv and therefore can only be loosened to a limited extent with standard Phillips tools.
