2 / 3 Port Mechanical Valve VM100 Series (VM132-M5-30GZA)
Atenție
- See catalog for specification details.
- Product images may be representative images. Refer to the catalog for details.
- Preț unitar (fără TVA)
- 45.32 €
- Total (fără TVA)
- 45.32 €Preț cu TVA incluse: 53.93 €
- Data expedierii
- 22 zile lucrătoareDată de expediere de referință: 09.07.2025
| Cantitate | 1 - 10 | 11+ |
|---|---|---|
| Preț unitar (fără TVA) (Preț unitar cu TVA incluse) | 45.32 € (53.93 €) | 45.32 € (53.93 €) |
| Shipping days | 22 days | Quote |
- * Informații privind zile de expediere, costurile de expediere și prețurile
Informații despre produs
2/3 Port Mechanical Valve VM100 Series Details
2/3 Port Mechanical Valve VM100 Series product image
2/3 Port Mechanical Valve VM100 Series Specifications
| Piping | Side ported | Bottom ported | |||
|---|---|---|---|---|---|
| Applicable fluids | Air | ||||
| Operating pressure range | -100 kPa to 1 MPa | ||||
| Ambient and fluid temperature | -5 to 60°C (no freezing) | ||||
| Flow rate characteristics | - | 1 (P) ⇒ 2 (A) | 2 (A) ⇒ 3 (R) | 1 (P) ⇒ 2 (A) | 2 (A) ⇒ 3 (R) |
| C (dm3/ [s·bar]) | 0.6 | 0.5 | 0.5 | 0.45 | |
| b | 0.2 | 0.15 | 0.2 | 0.15 | |
| Cv | 0.11 | 0.1 | 0.11 | 0.1 | |
| LubricationNote 1) | Not required | ||||
| Port size | 1/8 (Rc, NPT, G) | M5 | |||
| Weight (Basic) | 60 g | 67 g | |||
| Bracket part numberNote 2) | VM1-B | - | |||
Note 1) Use turbine oil class 1 ISO VG32, if lubricated.
Note 2) Bracket can only be used with side mounting side ported type.

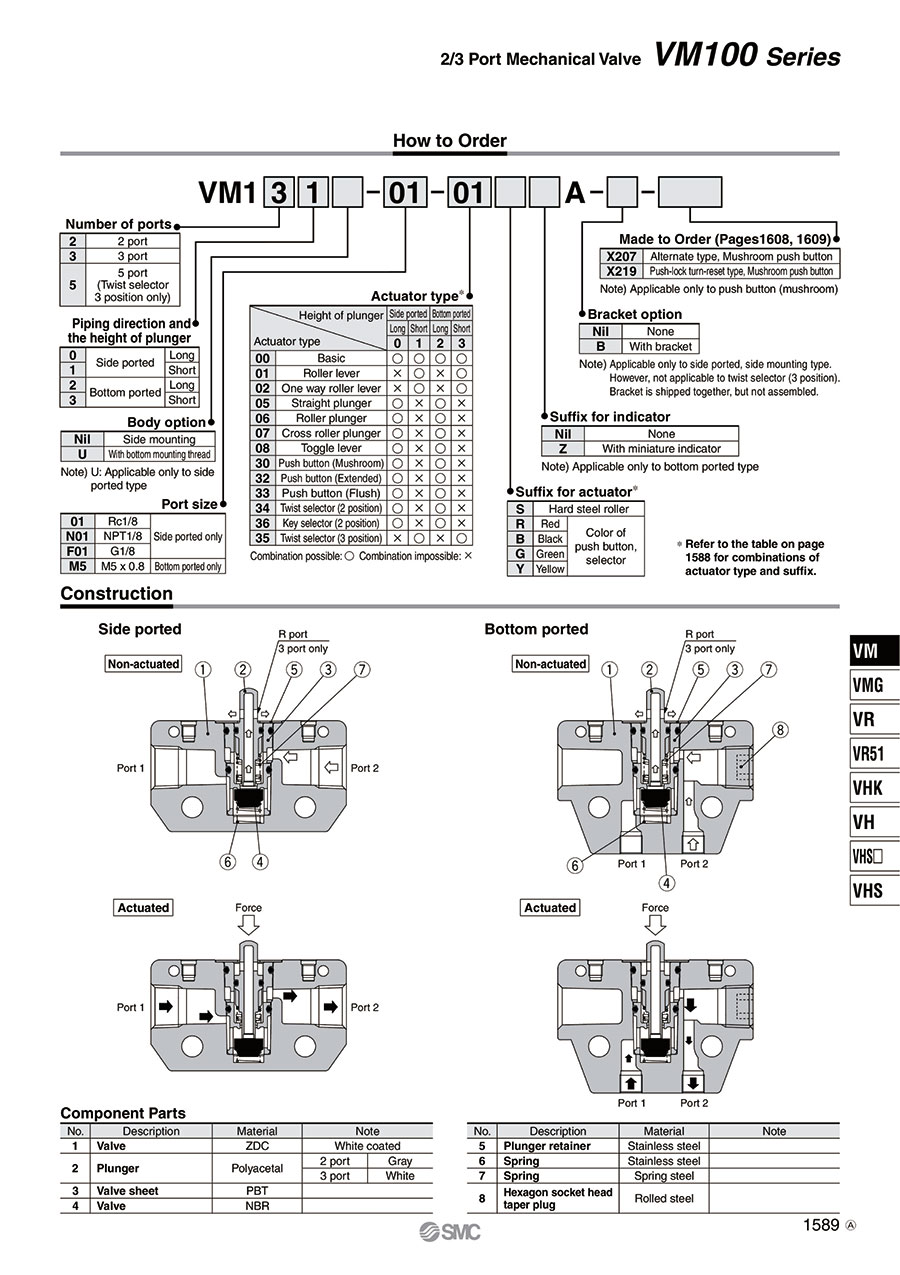

Model Number Notation
Model number example
Structural drawing
Side Ported Structural Drawing
Bottom Ported Structural Drawing
| Number | Part name | Material | Note | |
|---|---|---|---|---|
| 1 | Valve main body | ZDC | White coated | |
| 2 | Plunger | Polyacetal | 2 port | Gray |
| 3 | Valve seat | PBT | 3 port | White |
| 4 | Valve | NBR | - | |
| 5 | Plunger retainer | Stainless steel | - | |
| 6 | Spring | Stainless steel | - | |
| 7 | Spring | Spring steel | - | |
| 8 | Hexagon socket head taper plug | Rolled steel | - | |
2/3 Port Mechanical Valve VM100 Series Example Dimensions
Side Ported (VM120-01-00A/VM130-01-00A/VM121-01-00A/VM131-01-00A)
(Unit: mm)
Side Ported (VM120-01-00A/VM130-01-00A/VM121-01-00A/VM131-01-00A) dimensional drawing
| Model | L | A |
|---|---|---|
| VM120-01-00A | 32.5 | 7.5 |
| VM130-01-00A | ||
| VM121-01-00A | 28.5 | 3.5 |
| VM131-01-00A |
| F.O.F.* | 26 N |
|---|---|
| P.T. | 1.5 mm |
| O.T. | 1.5 mm |
| T.T. | 3 mm |
- *At 0.5 MPa
Bottom Ported (VM122-M5-00A/VM132-M5-00A/VM123-M5-00A/VM133-M5-00A)
(Unit: mm)
Bottom Ported (VM122-M5-00A/VM132-M5-00A/VM123-M5-00A/VM133-M5-00A) dimensional drawing
| Model | L | A |
|---|---|---|
| VM122-M5-00A | 32.5 | 7.5 |
| VM132-M5-00A | ||
| VM123-M5-00A | 28.5 | 3.5 |
| VM133-M5-00A |
| F.O.F.* | 26 N |
|---|---|
| P.T. | 1.5 mm |
| O.T. | 1.5 mm |
| T.T. | 3 mm |
- *At 0.5 MPa
Informații detaliate
Informații de bază
2/3 Port Mechanical Valve VM100 Series with a variety of actuator types.
[Features]
· Compact size equivalent to a micro switch.
· Piping direction (side ported or bottom ported) can be selected.
Atenție
- See catalog for specification details.
- Product images may be representative images. Refer to the catalog for details.
