Have drawing parts
custom-made

If our standard parts don’t fit your drawings, we offer the service of creating custom-machined parts for you

Benefits of MISUMI custom-machined parts

Didn't you find a fitting part within the wide MISUMI product portfolio? In this case, you can also send us a drawing of your desired product (single component, no assemblies) and have a custom-machined part made. Your documents will of course be treated confidentially and only used for the purpose of creating the offer. With this service, you benefit from:

  • Product machined according to drawing
  • Both standard & custom-machined parts from the same shop
  • Global supplier pool from Europe and Asia
  • High confidential treatment of your documents
Request your non-binding quote!

How having a custom-machined part made works

Send us a request with your desired part (single component, no assemblies). We will send you our best offer and, if acceptable, take care of your production. To further reduce the time needed, following information are required.

Requirement for drawings:

  • PDF format
  • Completely dimensioned
  • STEP file (if available)

Please also specify:

  • Desired material
  • Surface treatment (if required)
  • Heat treatment (if required)
  • Required quantity
  • Target price (if available)


Please note: As we take great care in having high-quality parts produced for you, this service may take more time than the usual MISUMI standard quotation and production service. Please calculate with a quotation turnaround time of approx. 3 working days and a production lead time of approx. 20 working days.

MISUMI custom-machined parts

Choose from different materials, heat and surface treatments and many more parameters for your custom-machined parts:

Material Machines Heat Treatment Surface Treatment
Steel Stainless steel Aluminium Carbide Bronze Brass Titanium Plastics Cerazur® Volcera® NC Milling / NC Lathe CNC Milling / CNC Lathe Internal grinding Flat-/Circular grinding Wire electrical discharging machining Flame cutting Laser marking Engraving Case hardening Plasma nitriding Gas nitriding Induction hardening Hardening Quench and temper Black oxiding Oiling / phosphating Anodising Galvanising Nickel plating Zinc plating Chrome plating Sandblasting / polishing DLC (Black) DLC (Rainbow)

Machining Size

 Round objects: Diameter Ø: 5 mm ~ 250 mm, Length: 5 mm ~ 800 mm Square objects: Min.: 8 mm x 15 mm x 15 mm, Max.: 300 mm x 400 mm x 1000 mm

Geometric Tolerances

 up to ± 0,02 mm Geometric Tolerances

Position Tolerances

 up to ± 0,09 mm Position Tolerances

Quantity/Weight

 1 – 1000 pcs / max. 1000 kg PLEASE NOTE: 1– 4 pcs = cost-intensive / > 1000 pcs Big order process

Testing Equipment

 Coordinate measuring machine(CMM) Measuring room Temperature controlled room Manual testing

For detailed information, you can download our custom-machined parts brochure.

Download the brochure

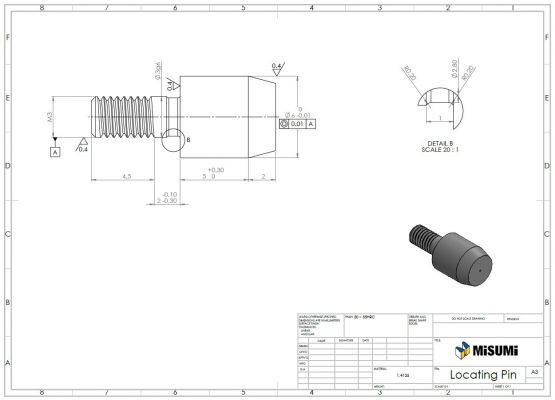

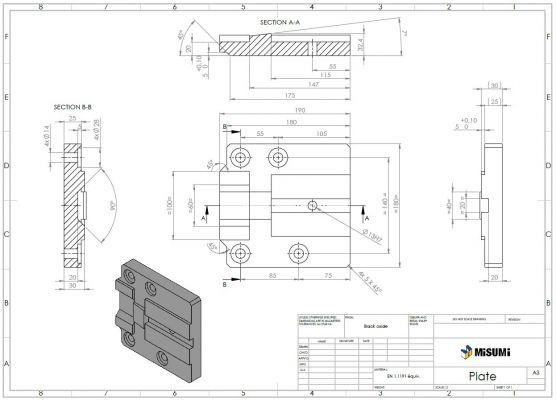

Drawing examples of common custom-made parts

Click on an example to open PDF for more details

If you didn't find your fitting part in the MISUMI e-catalogue, request your custom-machined part!

  Request your part today
